The color assigned to each strut is based on the depth from the main axis. In general, red struts are closest and blue ones are farthest away. For front views, the red struts are near the nostrils and the blue ones are near the back of the nose (the bridge). For side views, the red struts are farthest from the center line of the nose, and the blue struts are on the center line or near it. For top views the red struts are at the top of the model (the tip of the nose) and the blue struts are along the base, where the nose will meet the playa.

There is also a file containing the list of neighbor vertexes for each vertex. In a pinch, this information could be used to guide construction of the nose.

These images were generated using the Nose Calculator, which is actually a very flexible tool which will work with your data files to present similar drawings and calculations for your own conduit project.

Total views:

• Whole nose, seen from side
• Whole nose, seen from top
• Whole nose, seen from front

Slices which show vertex labels:

• First slice, seen from side
• Second slice, seen from side
• Third slice, seen from side
• First slice, seen from top
• Second slice, seen from top
• Third slice, seen from top
• First slice, seen from front
• Second slice, seen from front
• Third slice, seen from front

Slices which show strut labels:

• First slice, seen from side
• Second slice, seen from side
• Third slice, seen from side
• Fourth slice, seen from side
• Fifth slice, seen from side
• Sixth slice, seen from side

• First slice, seen from top
• Second slice, seen from top
• Third slice, seen from top
• Fourth slice, seen from top
• Fifth slice, seen from top

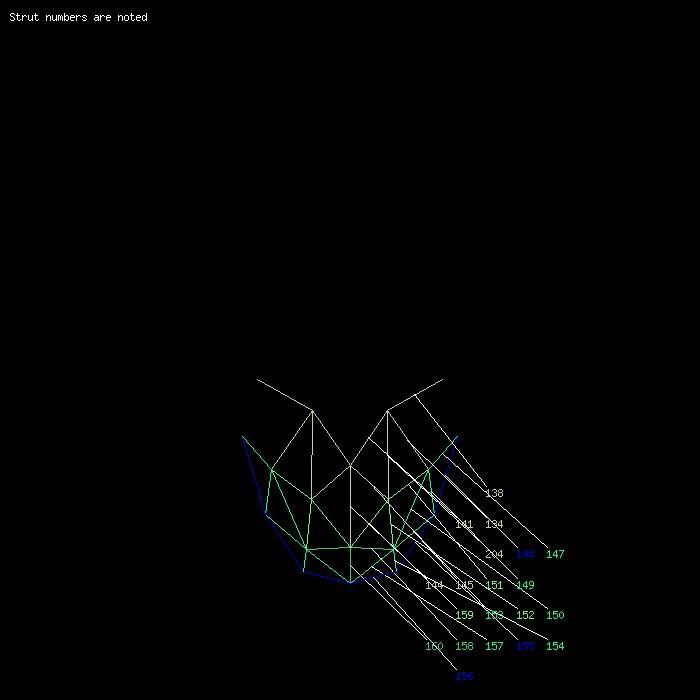

• Sixth slice, seen from top

• First slice, seen from front
• Second slice, seen from front
• Third slice, seen from front
• Fourth slice, seen from front
• Fifth slice, seen from front
• Sixth slice, seen from front

These are detail images of the "deck":

• Top view of the deck
• Side view of the deck
• Front view of the deck
• Top view of the deck, with verticies noted
• Side view of the deck, with verticies noted
• Front view of the deck, with verticies noted
• Top view of the deck, with struts noted
• Side view of the deck, with struts noted
• Front view of the deck, with struts noted

These are detail images of the "strong column between the nostrils":

• Top view of the strong column between the nostrils
• Side view of the strong column between the nostrils
• Front view of the strong column between the nostrils
• Top view of the strong column between the nostrils, with verticies noted
• Side view of the strong column between the nostrils, with verticies noted
• Front view of the strong column between the nostrils, with verticies noted
• Top view of the strong column between the nostrils, with struts noted
• Side view of the strong column between the nostrils, with struts noted
• Front view of the strong column between the nostrils, with struts noted

These are detail images of the "booger joint". The booger joint is where 15 struts come together... :

• Top view of the booger joint
• Side view of the booger joint
• Front view of the booger joint
• Top view of the booger joint, with verticies noted
• Side view of the booger joint, with verticies noted
• Front view of the booger joint, with verticies noted

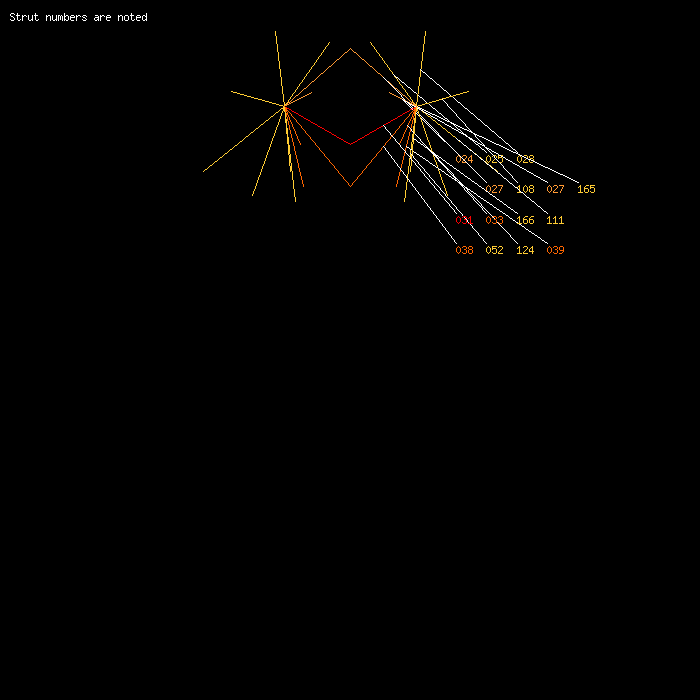

• Top view of the booger joint, with struts noted
• Side view of the booger joint, with struts noted
• Front view of the booger joint, with struts noted
