Using the Coplaner Jig

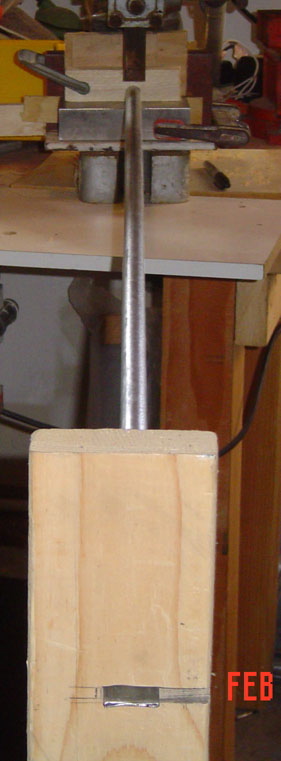

You need this jig because you need the two flat ends of each strut to be in the same plane (coplaner). You use it to guarantee that the second pressed end is in the same plane as the first one. So, after you have pressed one end, you insert the pressed end into the slot in the jig. Move the jig far enough away from the press so that the other end of the strut (which you are about to press) is in the right position. You may need to move the jig to one side or another to ensure that the strut enters the press straight-on and not at an angle.
